Flowmeters

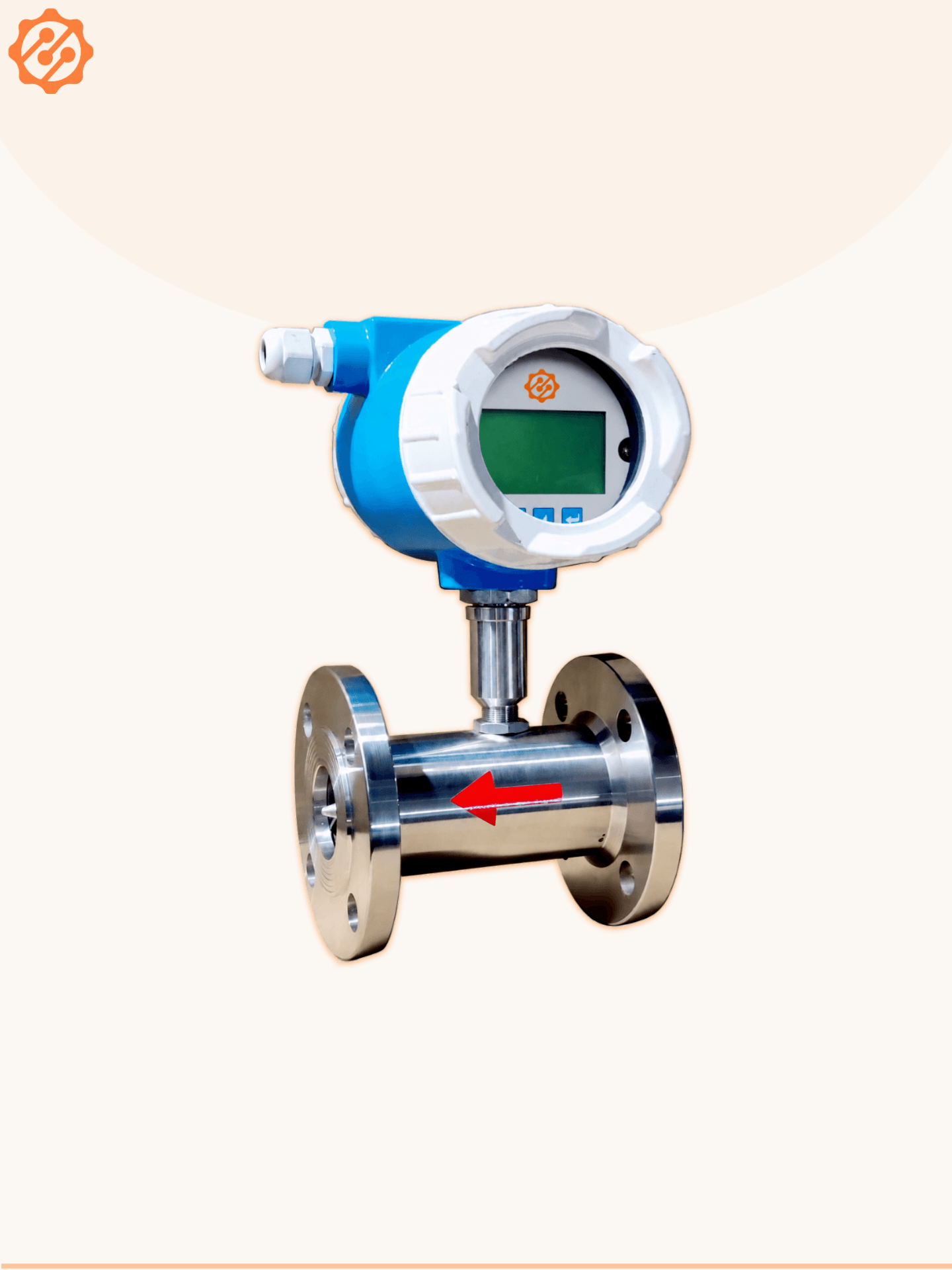

Turbine Flowmeter

Flowmeters

A turbine flow meter is constructed with rotor and blades that use the mechanical energy of the fluid to rotate the rotor in the flow stream. Blades on the rotor are angled to transform energy from the flow stream into rational energy. the rotor shaft spins on bearings. when he fluid moves faster, the rotor spins proportionally faster. shaft rotation can be sensed mechanically or by detecting the movement of rotor blades. Rotor movement is often detected magnetically, where movement of the rotor generates a pulse. when the fluid moves faster, more pulses generated. Turbine flow meter sensors detecting the pulse are typically located external to the flowing stream to avoid material of construction constraints that would result if wetted sensors were used. the RPM of the turbine wheel is directly proportional to the mean flow velocity within the tube diameter and corresponds to the volume flow over a wide range.

View Details Code: TFM-FL

Electro Magnetic Flowmeter

Flowmeters

Micro controller based full bore type electromagnetic flow transmitter specially used for various industrial applications. These flow transmitters accurately measures the flow rate of conductive liquids & slurries in closed pipes. Due to simple & rigid design the flow transmitter is an obstruction less & maintenance free instrument in place of conventional mechanical flow measuring device. The use of 'Pulsed DC' technology offers highest ability & better measuring accuracy in the form of electrical signal 4 - 20 mA DC linearly proportional to volumetric flow. The instrument is based on Faraday's law of electro-magnetic induction. A magnetic field is generated by the instrument in the flow tube. The fluid flowing through this magnetic field generates a voltage that is proportional to the flow velocity. Corresponding electrical output is provided with respect to measuring voltage.   Flowmeters Calculator

View Details Code: EMFM-FL

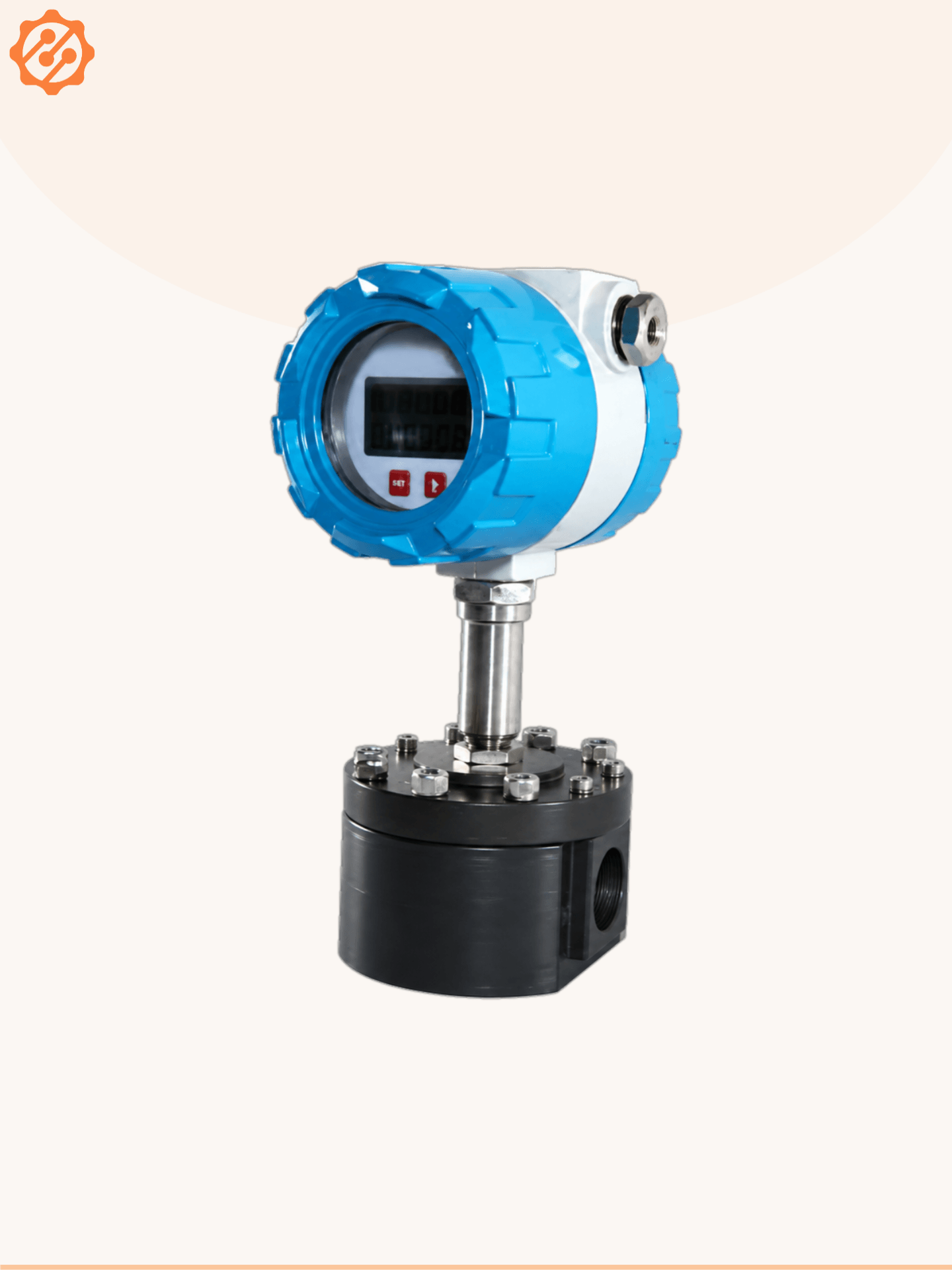

Oval Gear Flow Meter

Flowmeters

Flowtel Engineering’s Oval Gear Flow Meter is a high-precision positive displacement flow meter designed for accurate measurement of liquids across various industrial applications. Its oval gear mechanism ensures reliable flow measurement regardless of viscosity changes, making it ideal for oils, fuels, chemicals, solvents, and other liquids. Built with robust construction and advanced engineering, it delivers excellent repeatability, low pressure drop, and long-term performance even in demanding operating conditions.

View Details Code: OGFM-FL

Oval Gear Flow Sensor

Flowmeters

Flowtel Engineering’s Oval Gear Flow Sensor is a positive displacement flow measurement device designed for precise and reliable liquid flow monitoring. Using a pair of accurately machined oval gears, it directly measures the volume of liquid passing through the sensor, ensuring high accuracy and repeatability. Suitable for oils, fuels, chemicals, solvents, and other viscous liquids, it provides stable performance over a wide flow range with minimal pressure loss. Its robust construction, low maintenance requirements, and compatibility with electronic monitoring systems make it an ideal solution for industrial flow measurement applications.

View Details Code: OGFS-FL

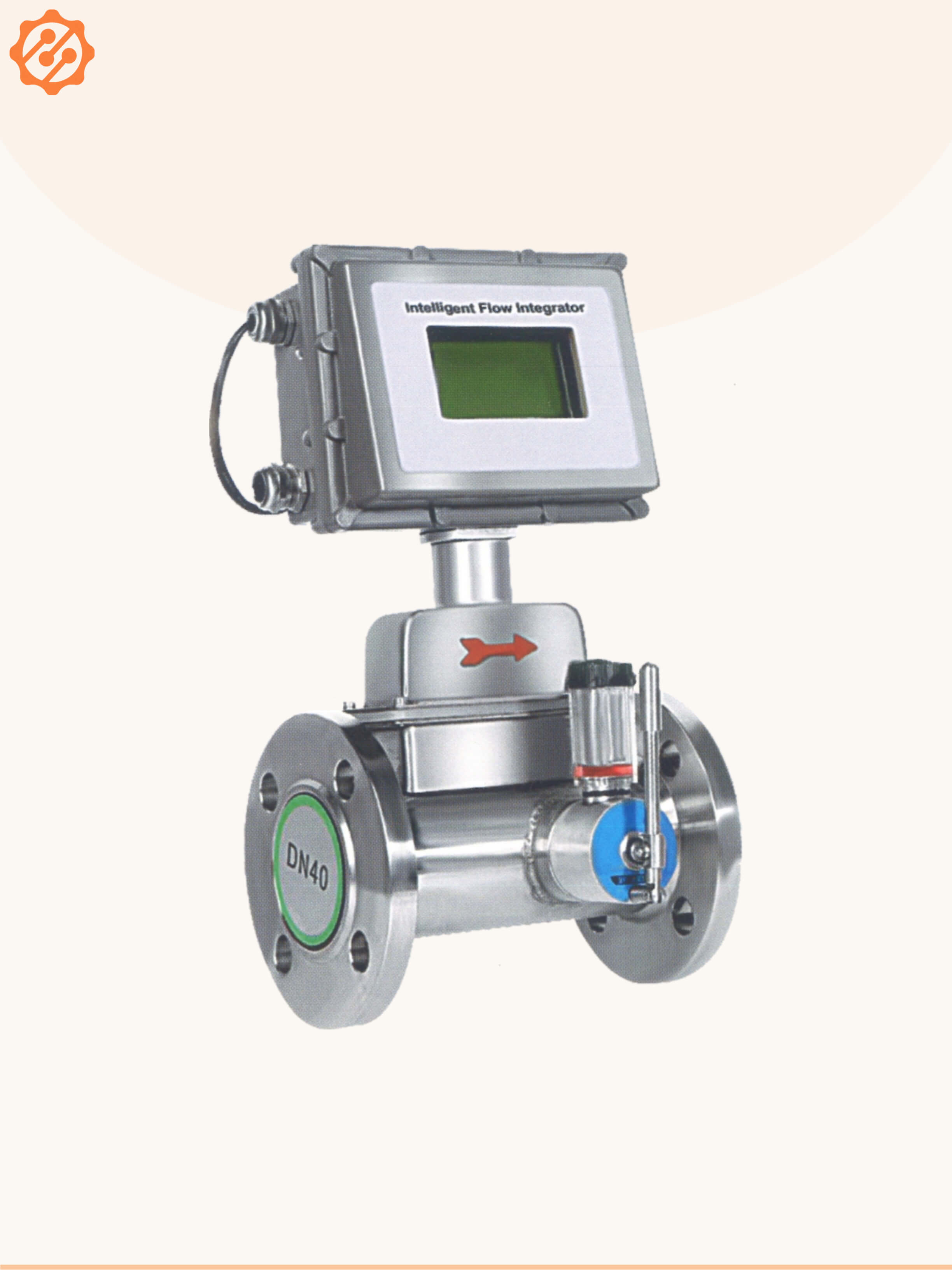

Gas Turbine Flowmeter

Flowmeters

Flowtel Engineering Series make FETFM-G Model Gas Turbine Flowmeter is a kind of velocity flow meter that accurately measures gas flow. It is suitable for clean gas with low and medium flow rate, such as natural gas, nitrogen, compressed air, etc.

View Details Code: GTFM-FL

Paddle Wheel Flowmeter

Flowmeters

Flowtel Engineering  Series FETFM-P Model Paddle Wheel Turbine Flowmeter is a mechanical flow meter that uses an impeller as a flow sensor component. The impeller-type flow meter is a meter that measures flow according to the principle of fluid momentum moment. Paddle wheel flow meter is also called an impeller flow meter, rotary wheel flow meter, etc. Typical Paddle wheel flow meters are water meters and turbine flow meters. It can be a mechanical transmission output type or an electric pulse output type. It is suitable for the measurement and control of industrial process clean water pipelines or low-concentration acid-base, low-viscosity single-phase fluid non-trade settlement process.

View Details Code: PWFM-FL

Vortex Flowmeter

Flowmeters

Flowtel Engineering  Series FEVF Model Vortex Flowmeter is composed of a vortex generator, a detection probe & corresponding electronic circuits. When the fluid flows through the vortex generator, two alternating rows of vortices are found on both sides of it which is called the Kamran Vortex Street. They are widely used in the measurement and control of superheated steam, saturated steam, water, liquid, compressed air & general gases.

View Details Code: VTXFM-FL

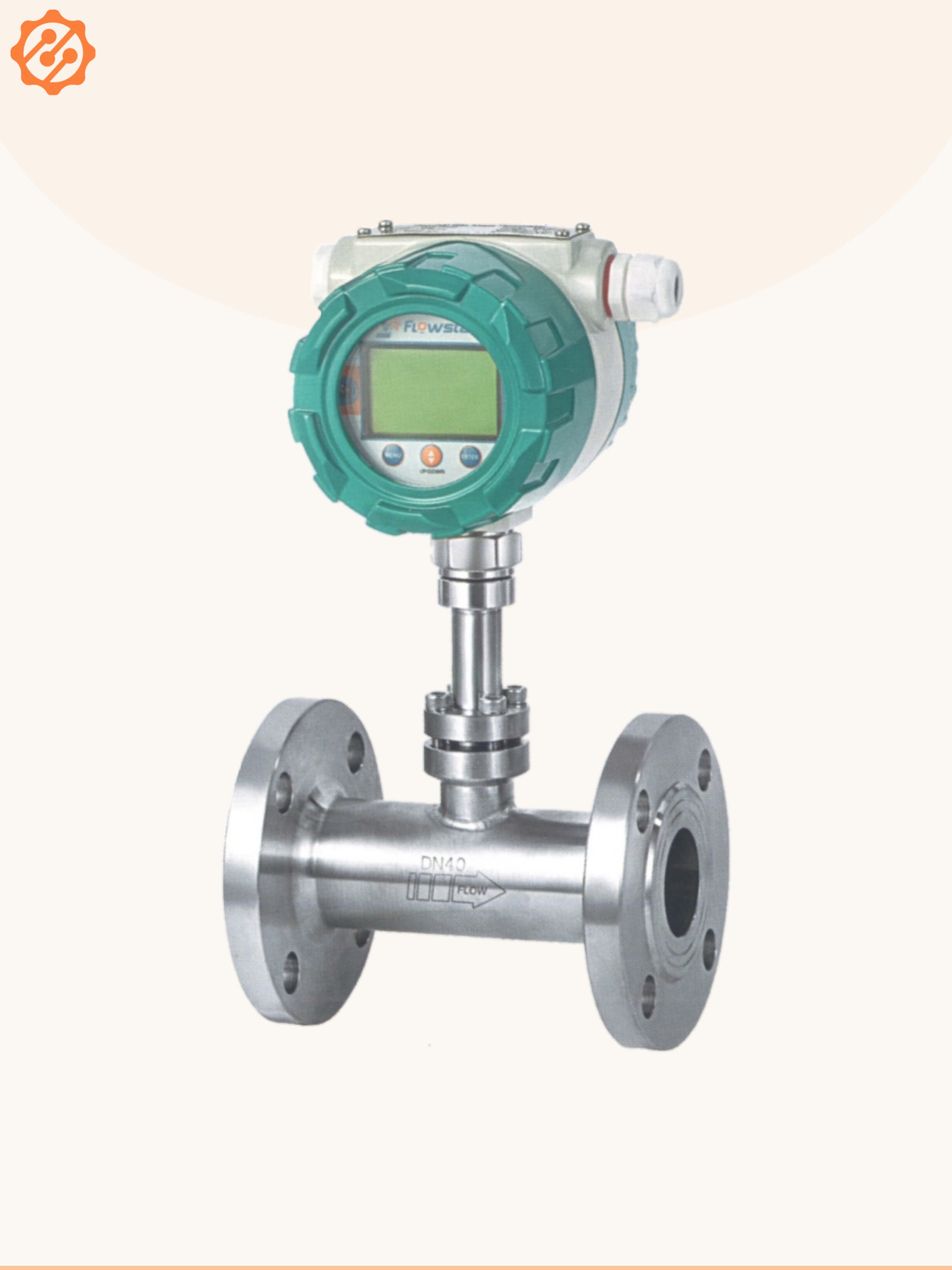

Thermal Gas Mass Flowmeter

Flowmeters

Flowtel Engineering Series FETMASS model Thermal Gas Mass Flowmeter is designed based on the principle of heat diffusion, and the meter uses the constant temperature difference method to accurately measure the gas.

View Details Code: TGMFM

Ultrasonic Flowmeter

Flowmeters

Flowtel Engineering Series FEULF Model Ultrasonic Flow/Heat Meters utilize the transit-time principle to measure the velocity of relatively clean liquids in full pipes. They are clamp-on devices that attach to the exterior of the pipe (and fit a variety of pipe sizes) and enable measurement of corrosive liquids without damage to the ultrasonic sensor. Converters can be installed at indoor or instrument cabinet transducers should be installed on the measuring pipe and both will be connected by cable. This flowmeter can be virtually applied to a wide range of measurement. A variety of liquid applications can be accommodated : Ultra-Pure Liquids, Water, Chemicals, Raw Sewage, Plant Effluent, Oil, Beverage, etc.

View Details Code: USFM-FL

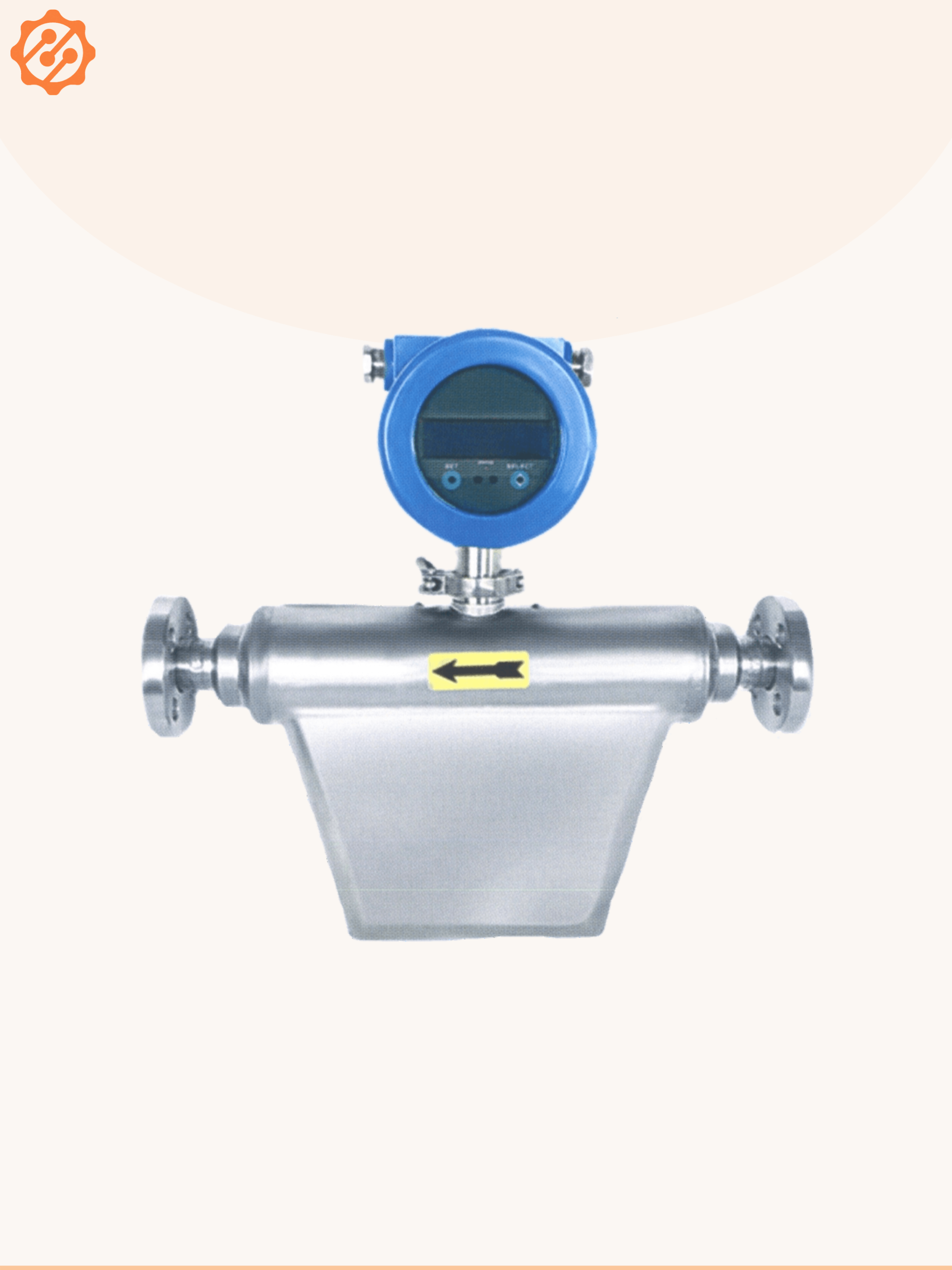

Coriolis Mass Flowmeter

Flowmeters

Flowtel Engineering Series FECMF Model Coriolis Mass Flow meter is based on the Coriolis effect. It can directly measure the mass flow of the fluid flowing inside the closed tube with high measurement accuracy. The measuring tube has a very low vibration, which can be regarded as an inactive component. It is a popular and very high-precision flow measuring instrument with no obstructions or moving parts in the measuring line. Coriolis force, the core parameter of a mass flow meter, refers to the force exerted by a body moving in a straight line in a rotating system.

View Details Code: CMFM-FL

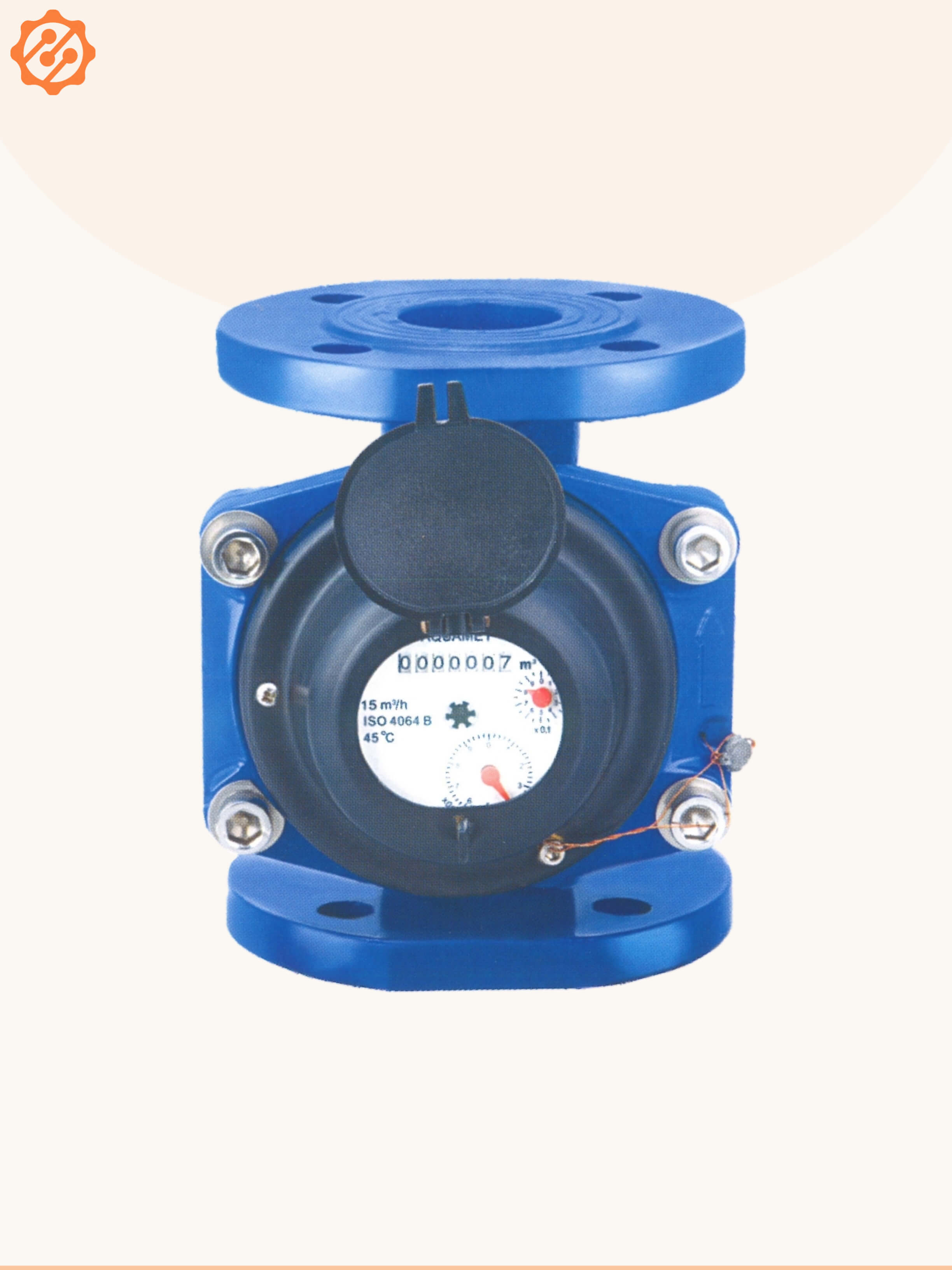

Woltman Water Metet

Flowmeters

Flowtel Engineering makes Woltman Water Meter suitable for use to measure the total flow of water passing through pipeline in water supply networks, mining, industrial enterprises & agriculture etc. A removable mechanism type Woltman Water Meter with magnetic drive and vacuum sealed register.

View Details Code: WWM-FL

Multijet Water Metet

Flowmeters

Flowtel Engineering offers high quality Multijet Water Meters designed for accurate and reliable water flow measurement in residential, commercial, and industrial applications. Built with robust materials and advanced metering technology, these meters provide high sensitivity, low pressure loss, long-term stability, and minimal maintenance. Flowtel Engineering ensures dependable performance, precision, and durability, meeting industry standards for efficient water management and monitoring.

View Details Code: MJWM-FL
