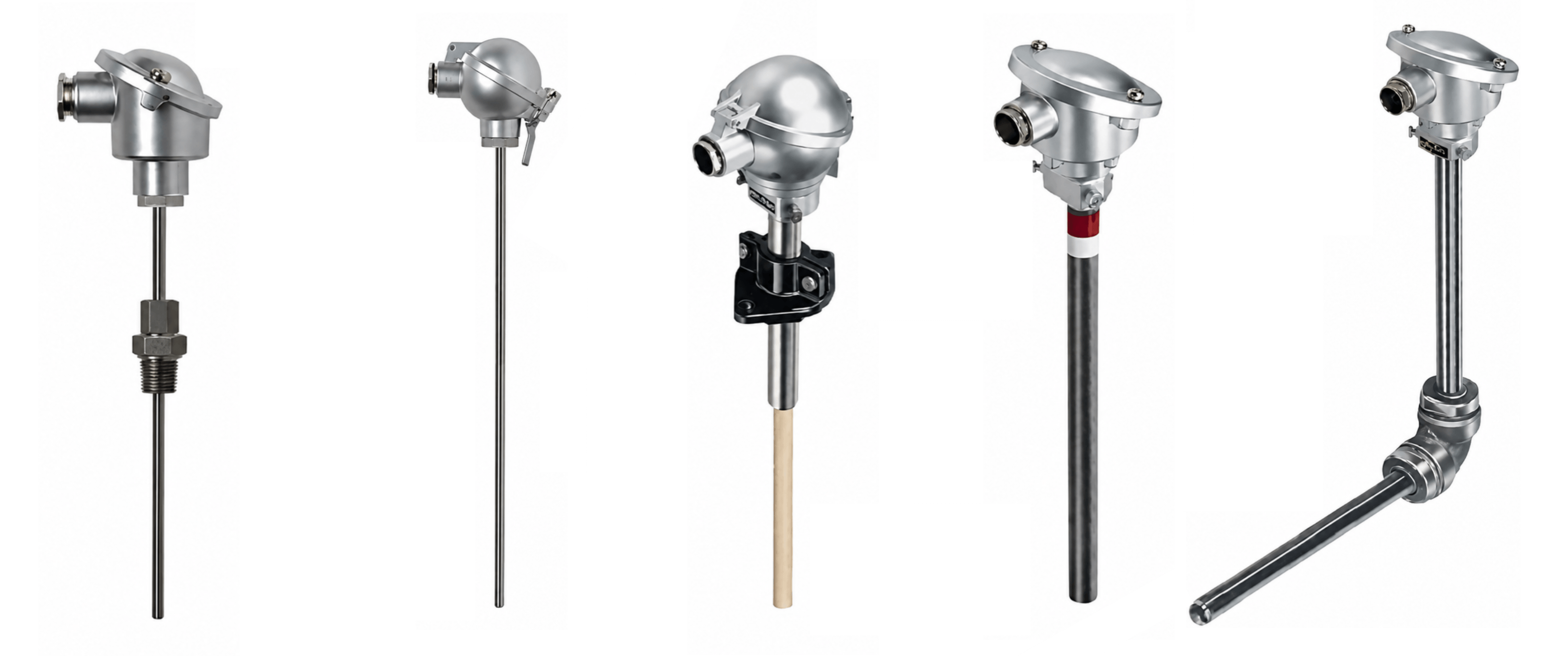

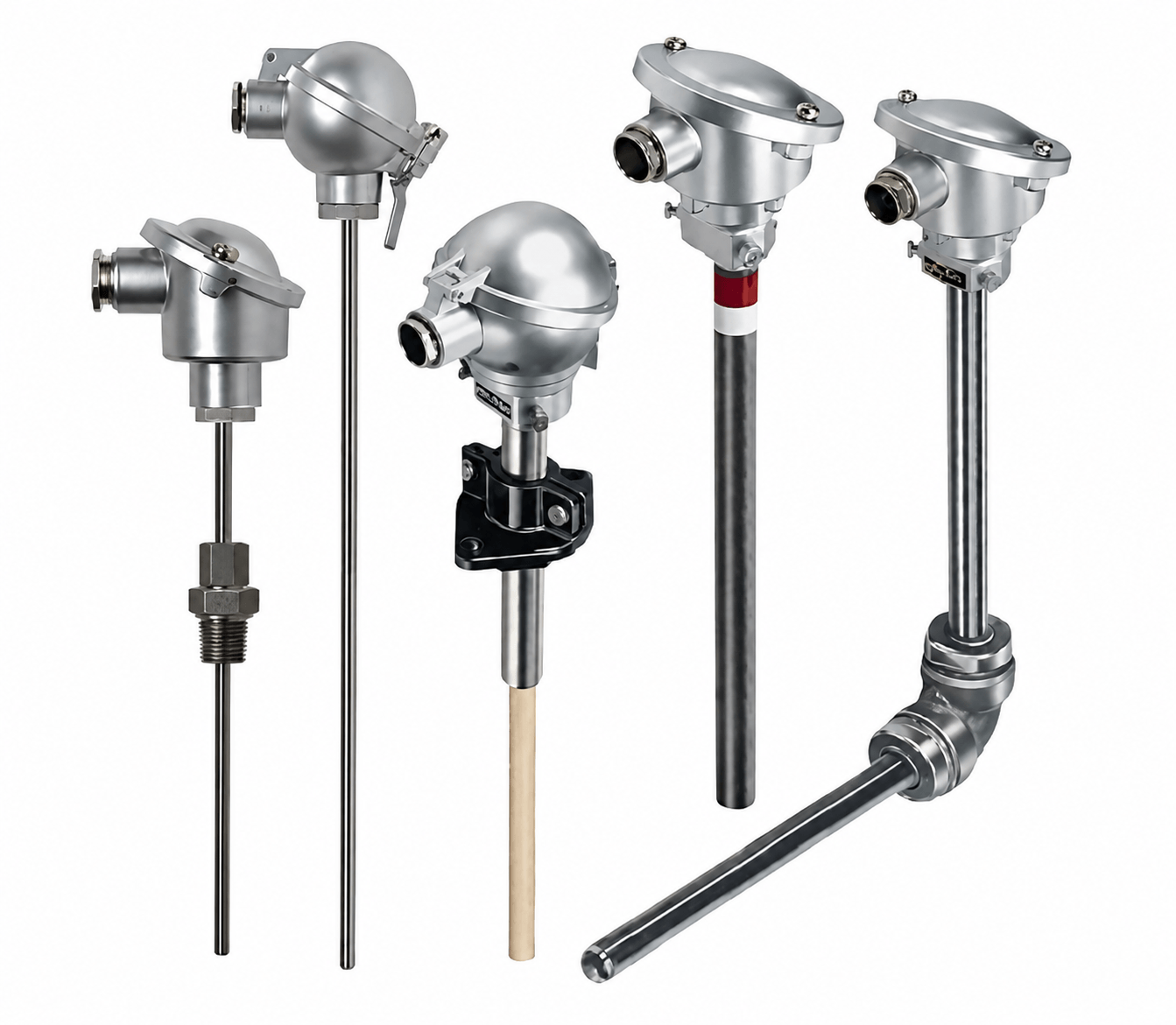

1 - Resistance Temperature Detectors (PT-100 Sensors)

Head Type Resistance Temperature Detectors (PT-100 Sensors) are magnesium Oxide filled & seasons with total protection from moisture, vibration and shock. These sensars are used to measure low temperatures of -200°C to +200°C, (with special) construction upto 600°C. Also coated sensors to measure temperatures of acidic / corrosive fluids upto 200°C.

• Type Of Sensor : RTD Sensor (PT-100)
• Din Standard : DIN 43760
• Sheath Material : SS 304, SS 316, Tefion Coated, Titanum
• Sheath O.d. : 6mm, 8mm, 10mm etc.
• Sensor Connection : 50, 100, 150, 300, 500MM and More.
• Process Connection : Standard 1/2" BSP fixed. Also 1/4', 1/2 3/4' fixed. Adjustable adaptorsin BSP & NPT are also available
• Construction of The Sensor : Simplex and duplex with aluminium die cast head, or CMRI certified flameproof head.

Also Transition Joint RTDs

 To measure Temperature between -200°C to 600°C with Extension wires:

• Teflon/ Teflon
• Teflon/Teflon/SS Braiding.

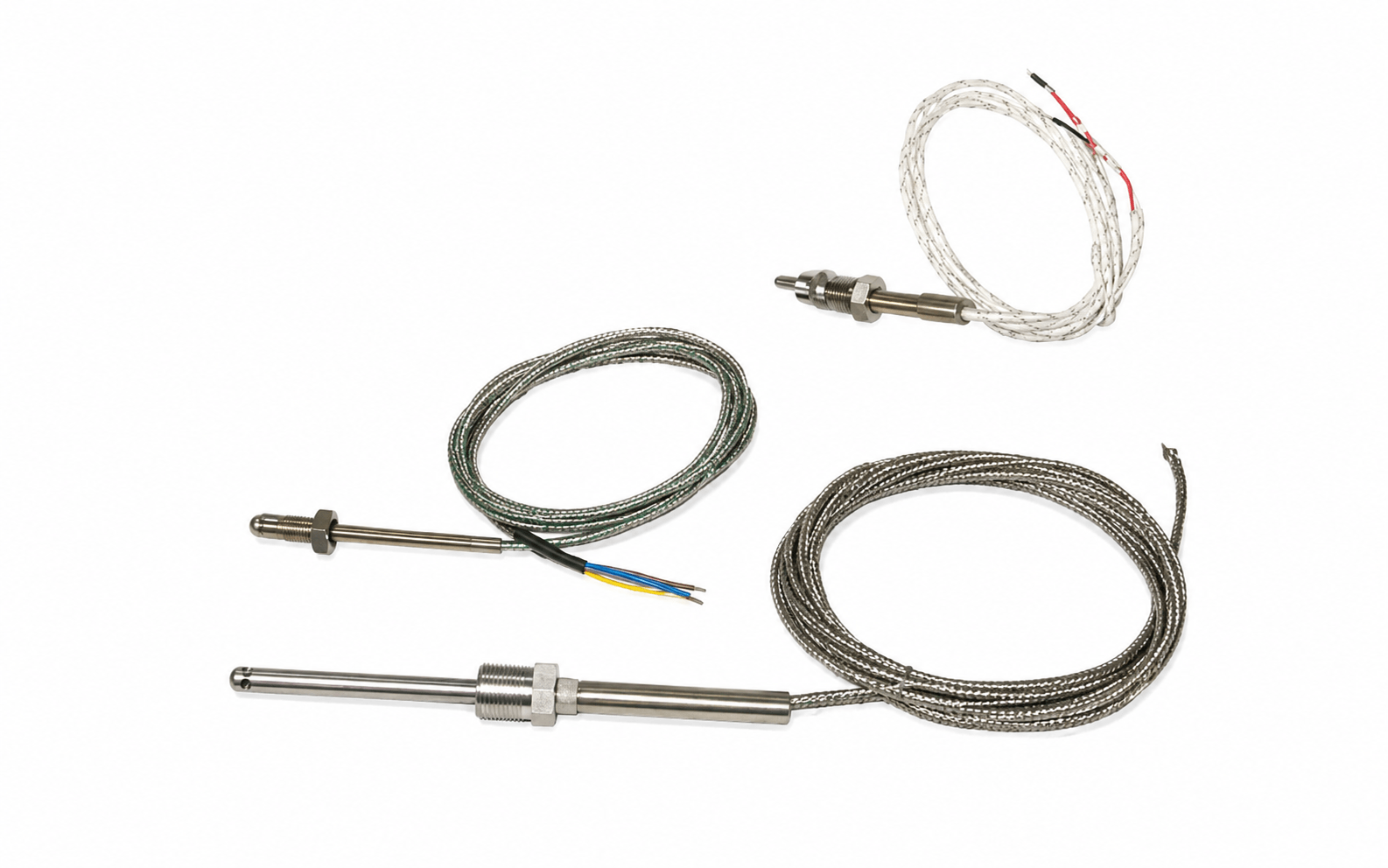

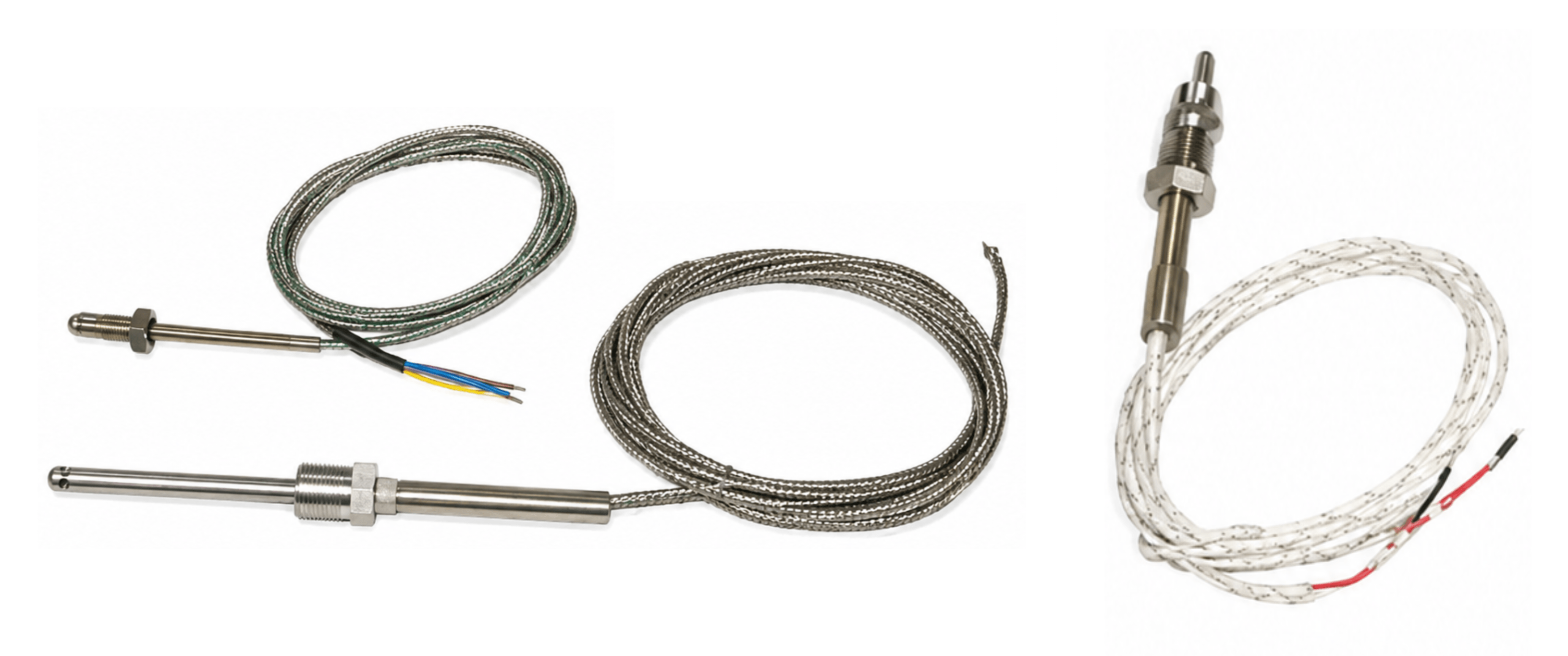

2 - Bayonet Type Thermocouples & RTDs

Bayonet Type Thermocouples and RTDs (Pt-100 Sensors) are available to measure temperature of the barrel and dies of Injection Moulding, Blow Moulding Machines & Extruders. The spring-loaded thermocouples and sensors assure proper firm tip contact to give fast & accurate temperature measurement.

• Type Of Thermocouples And Sensors : Chromel Alumel (K)
• Sensors : Iron-Constantan (J), PT-100
• Bayonet Assembly Type : Straight Angle & Spring Type
• Bayonet Adaptor Type : 1/8" BSP, 1/2" BSW, 3/8" BSP, 1/4" BSP, 5/8" BSW, 3/8" BSP
• Extension Wire : Fibreglass/Fibreglass/SS & Teflon/Teflon

ALSO WASHER & BOLT TYPE THERMOCOUPLES

To measure temperature of flat surfaces continuously, e.g.:

• Packaging Machines
• Rubber Moulding Machines
• Hot Platens etc.

BOLT TYPE THERMOCOUPLES

To measure temperature of any surface where they can be fixed by threading.

Custom designed as per requirements.

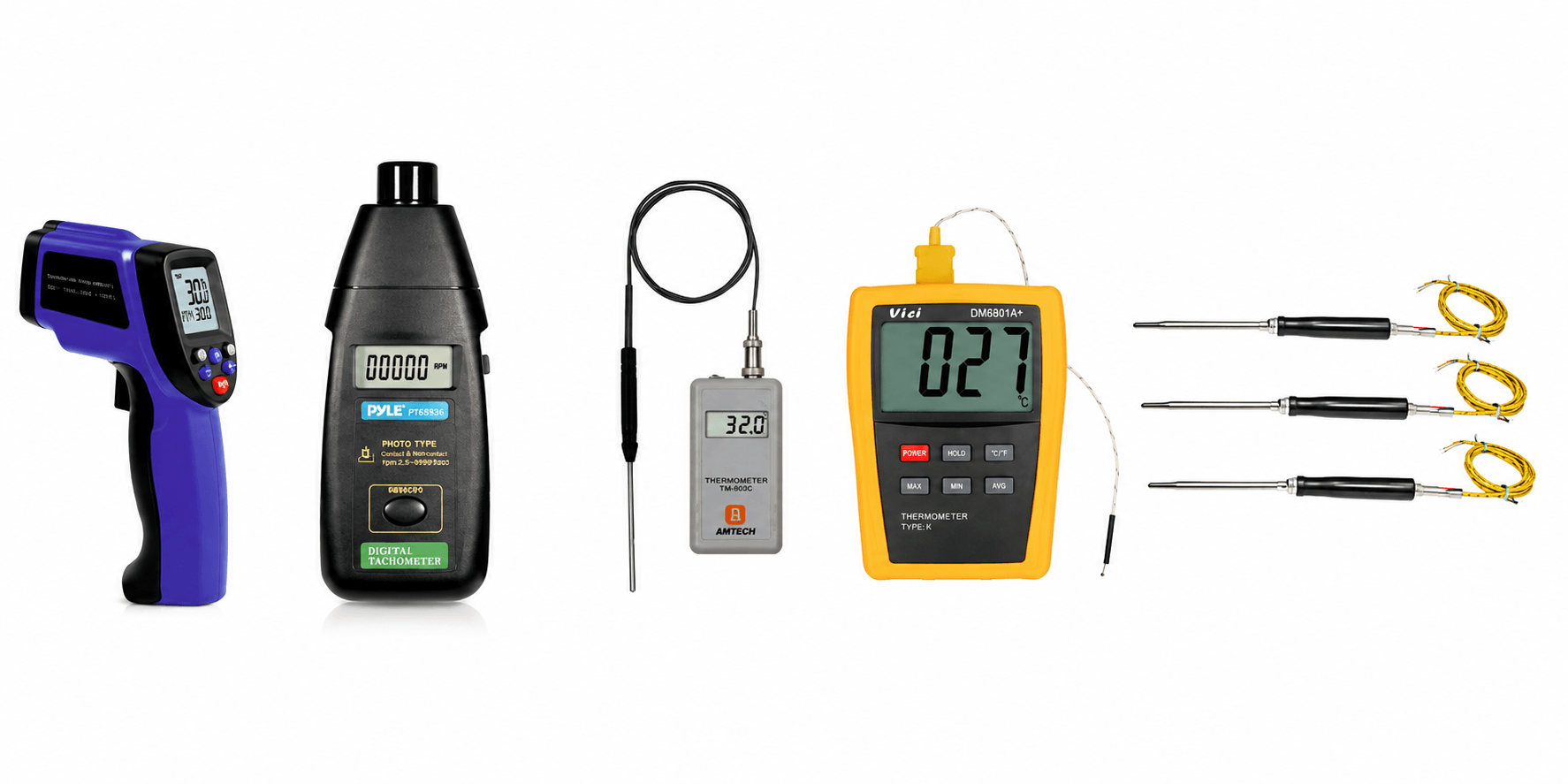

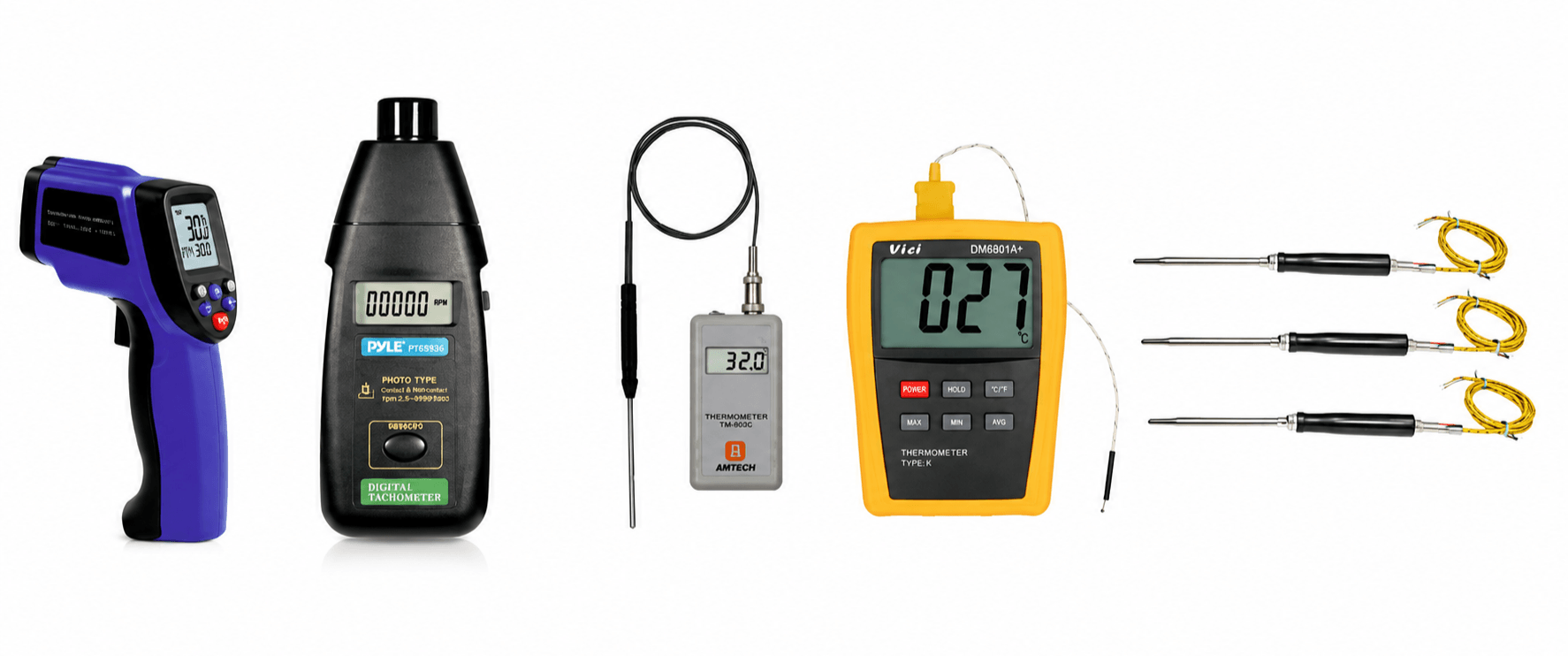

3 - Thermocouples For Portable Indicators

Sensors for use with portable indicators. Different probes for different applications for ease of operation, high accuracy & reliability.

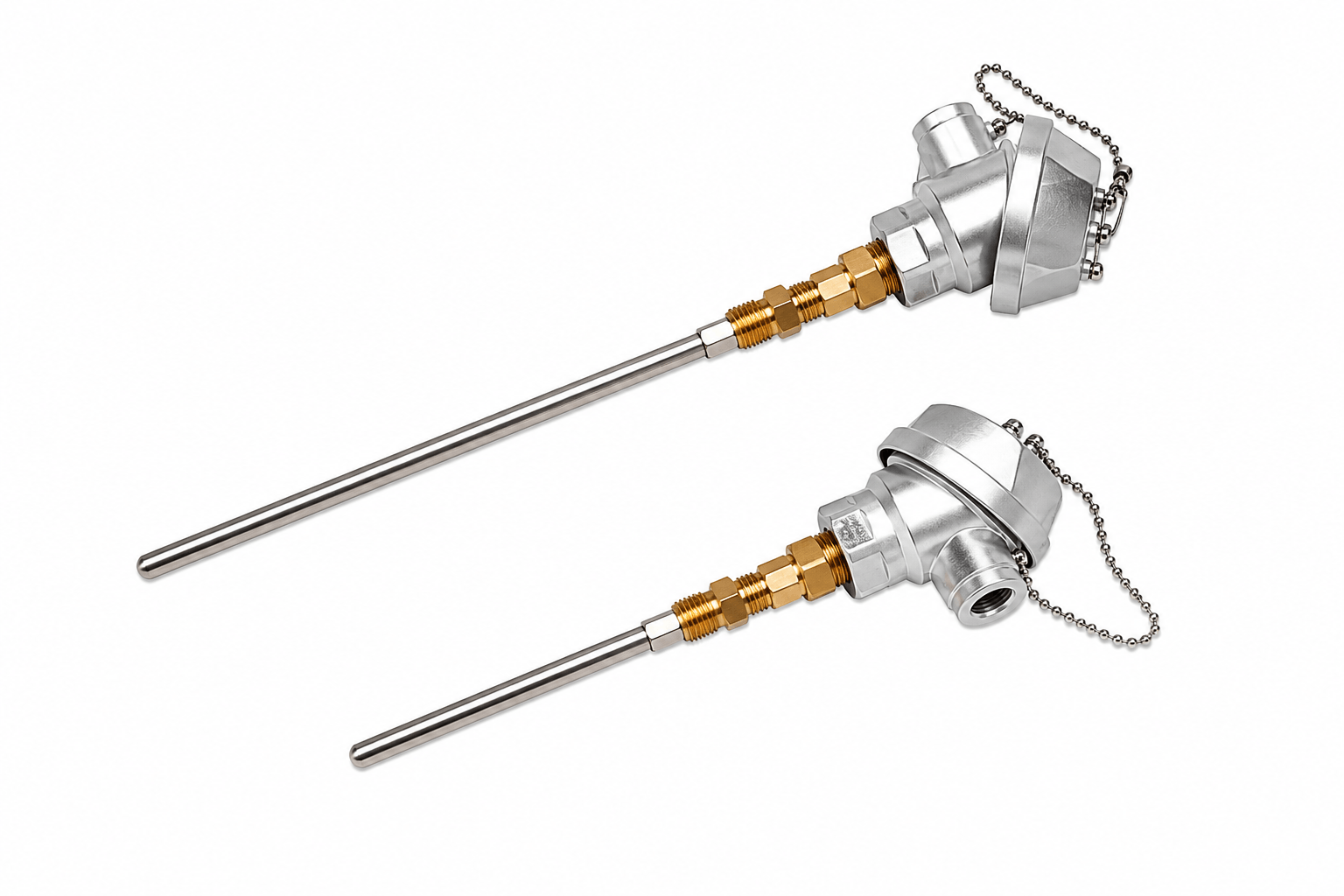

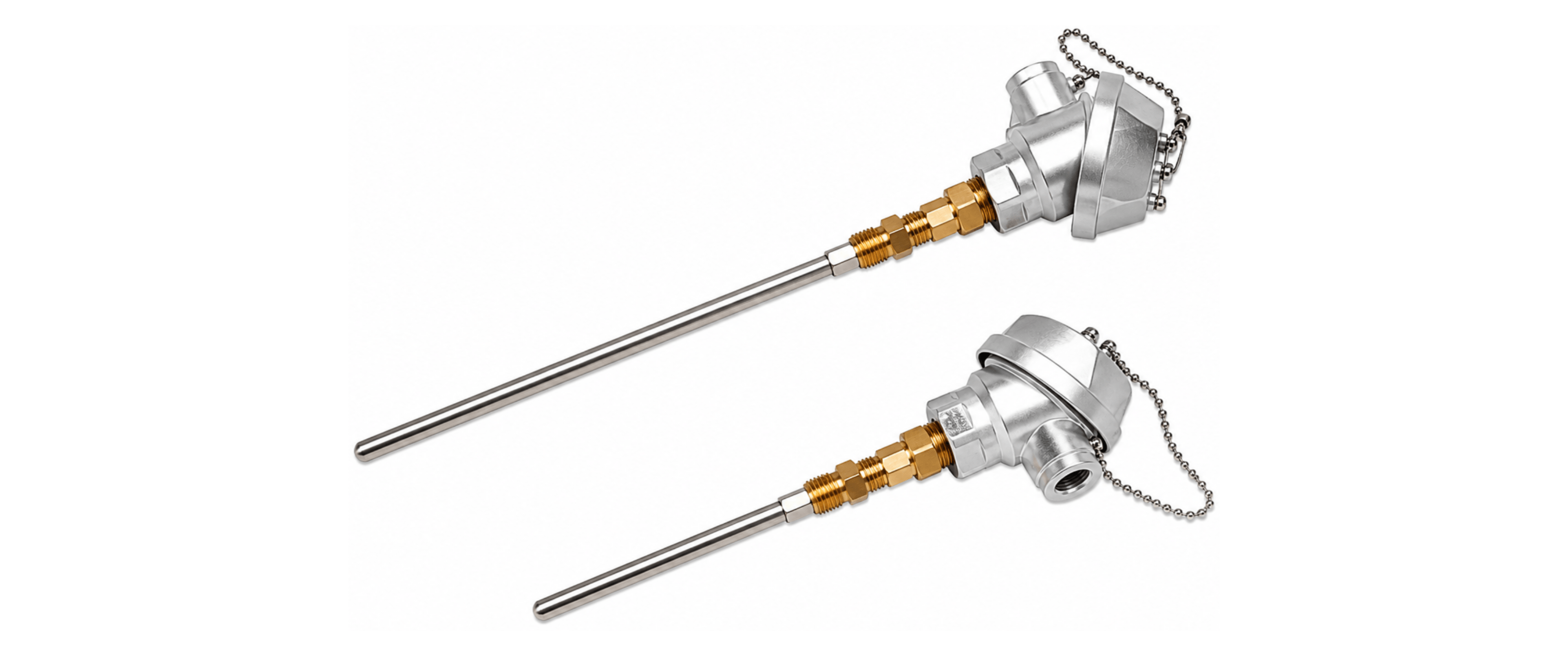

4 - General Purpose Thermocouples

General Purpose Head Type Thermocouples to measure temperatures upto a maximum of 900°C

• Types Of Thermocouples : Chromel-Alumel (K), Copper Constantan (T), Iron Constantan (J)
• Sheath Material : SS 304, SS 316
• Sheath O.D. : 3mm, 6mm, 8mm, 10mm, 12.7mm, 19mm, 22mm
• Thermocouples Length : Standard 150, 300, 500, 750mm, Other lengths available on request
• Process Connection : 1/4", 3/8", 1/2", 3/4", 1" BSP
• Compression Fitting : Also in NPT Sizes

Also Transition Joint Thermocouples to measure temperature upto 400°C.

With extension wire in:

• PVC/PVC
• FG/FG/SS
• Teflon etc.

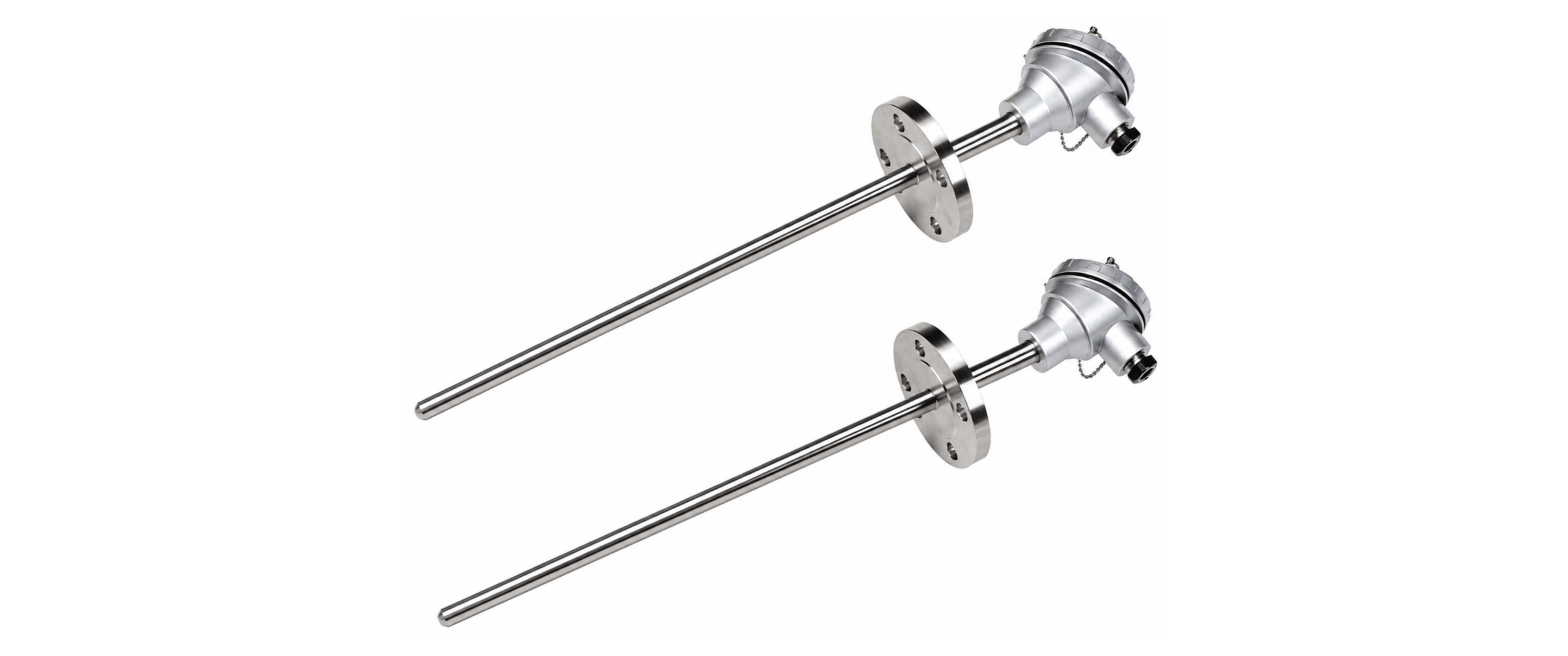

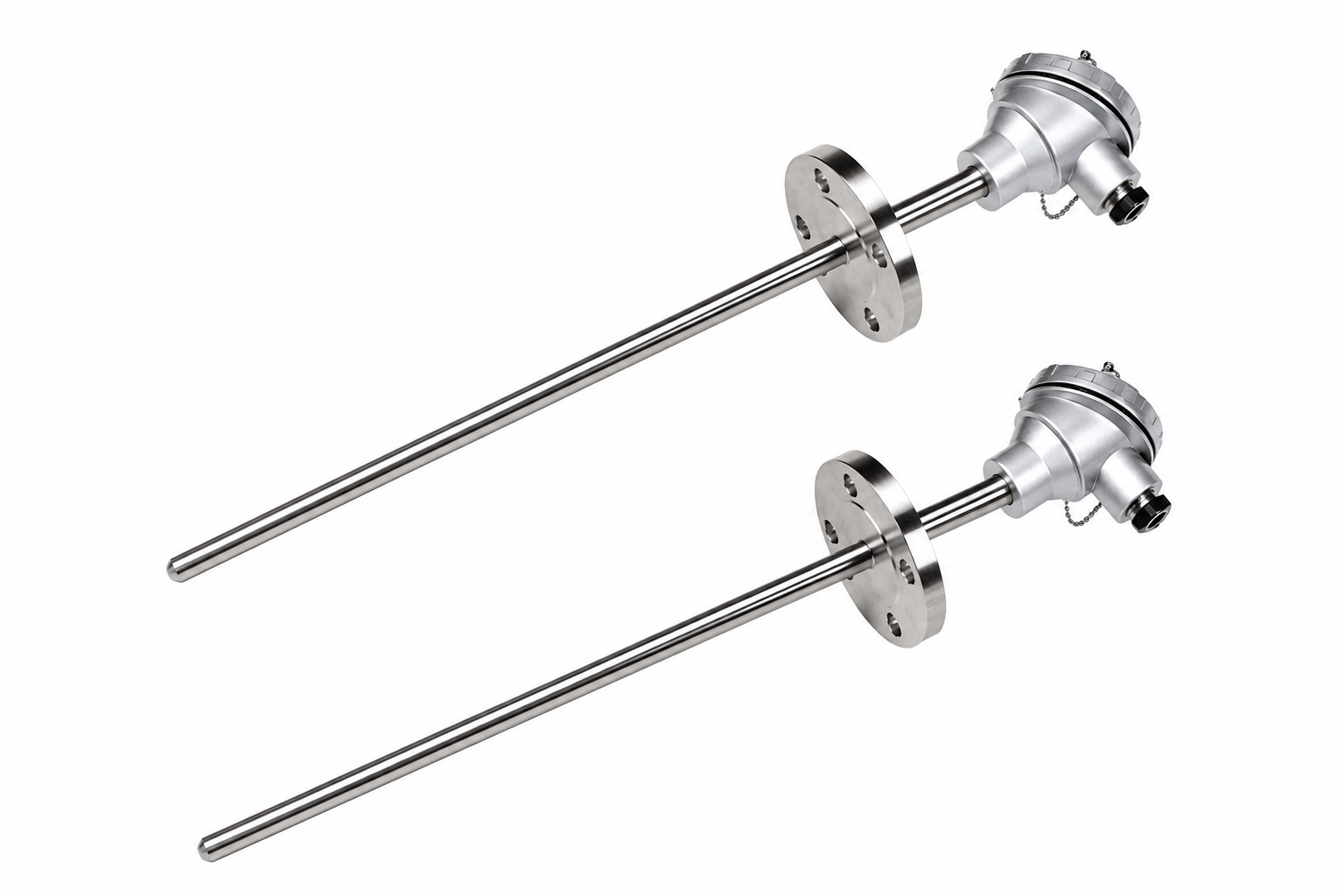

5 - High Temperature Thermocouples

High Temperature Thermocouples to measure temperature upto 1500°C. Different sheath material for various applications.

• Types Of Thermocouples : Chromel-Alumel
• Sheath Material : SS 310, HRS 446, Inconel-600
• Sheath O.D. : 19mm, 22mm, 25mm, etc. Other sizes available on request
• Thermocouples Length : 300, 500, 700, 1000mm. Other lengths available on request
• Sheath Type : Welded Pipe & Solid Drilled
• Construction of The T/c : Simplex & Duplex type, Straight & Angle type

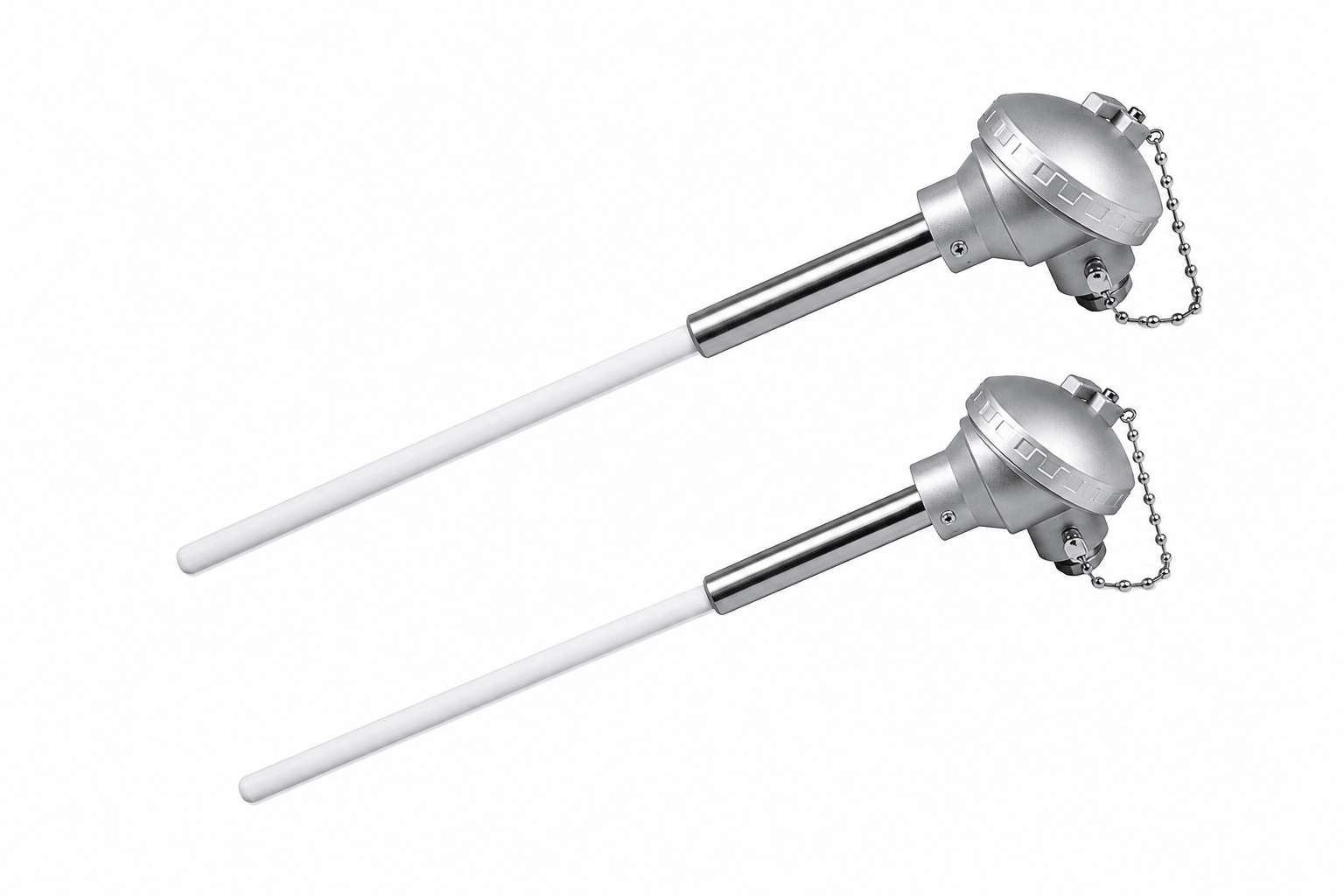

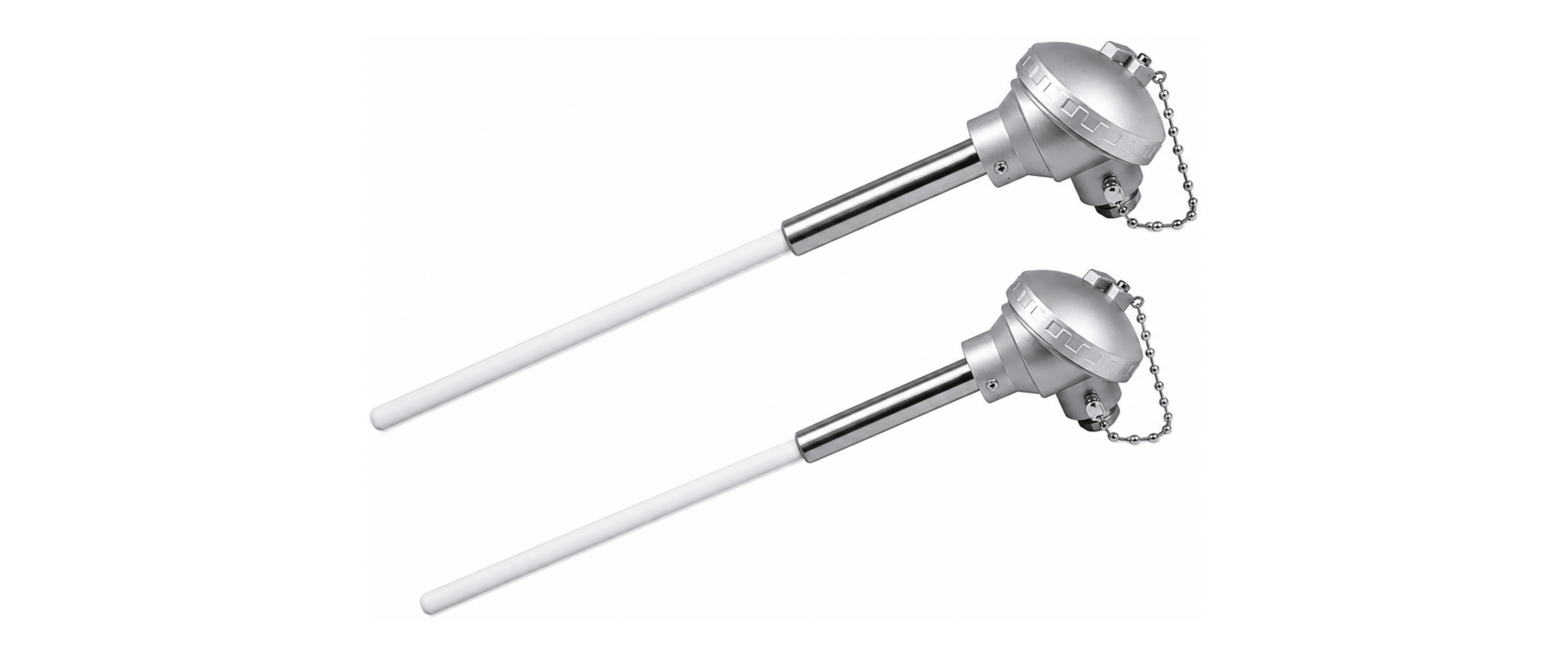

6 - Very High Temperature Thermocouples

R & S Type Thermocouples to measure comparatively high temperature upto a maximum of 1600°C

• Types Of Thermocouples : Platinum / Platinum-Rhodium (Pt/Pt-Rh) 13% & 10%
• Sheath Material : Ceramic Sheath or Recrystallised Alumina
• Thermocouple Length : 300, 600, 750mm. Other lengths available on request
• Sheath O.D. : 6mm, 8mm, 12mm, 15mm, 22mm, 29mm. Probe types also available for Lab purpose
• Construction Of The Thermocouple
  • a) Single refractory & Double refractory
  • b) Straight type & Angle type

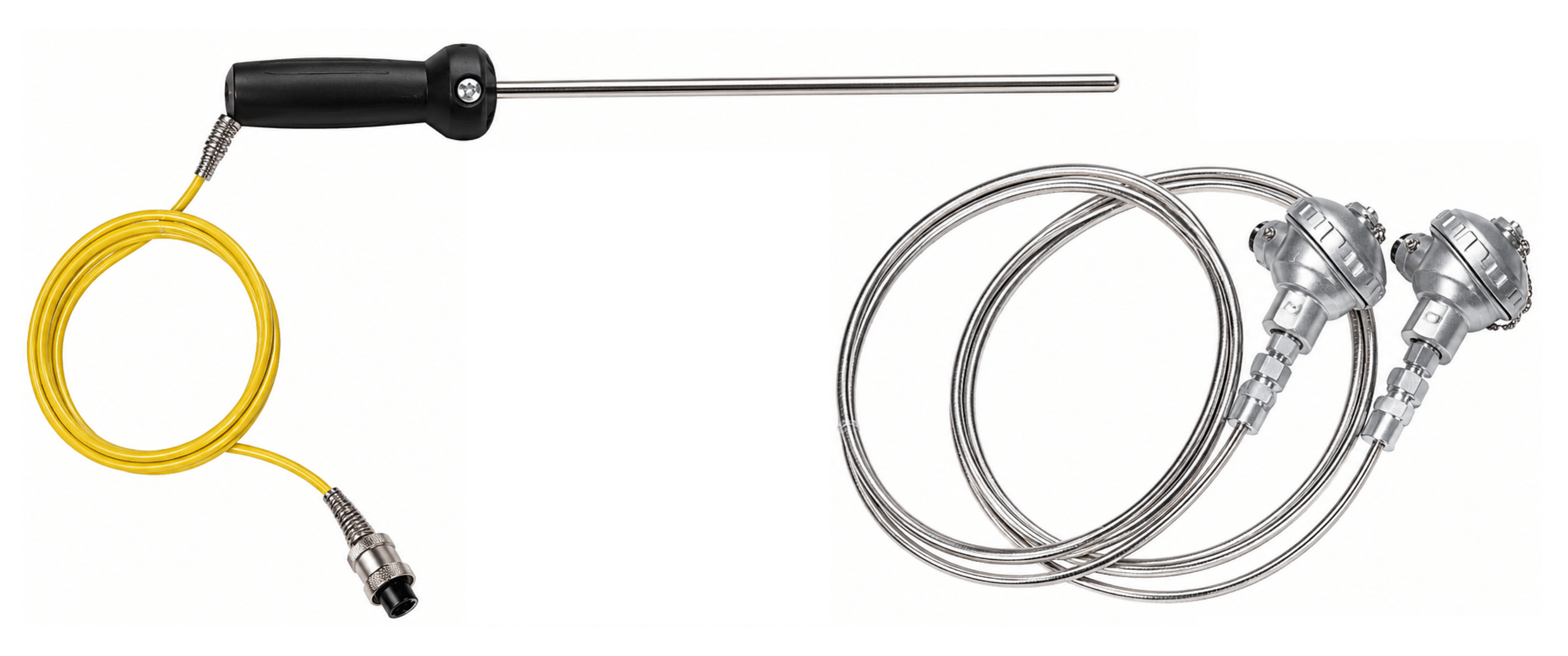

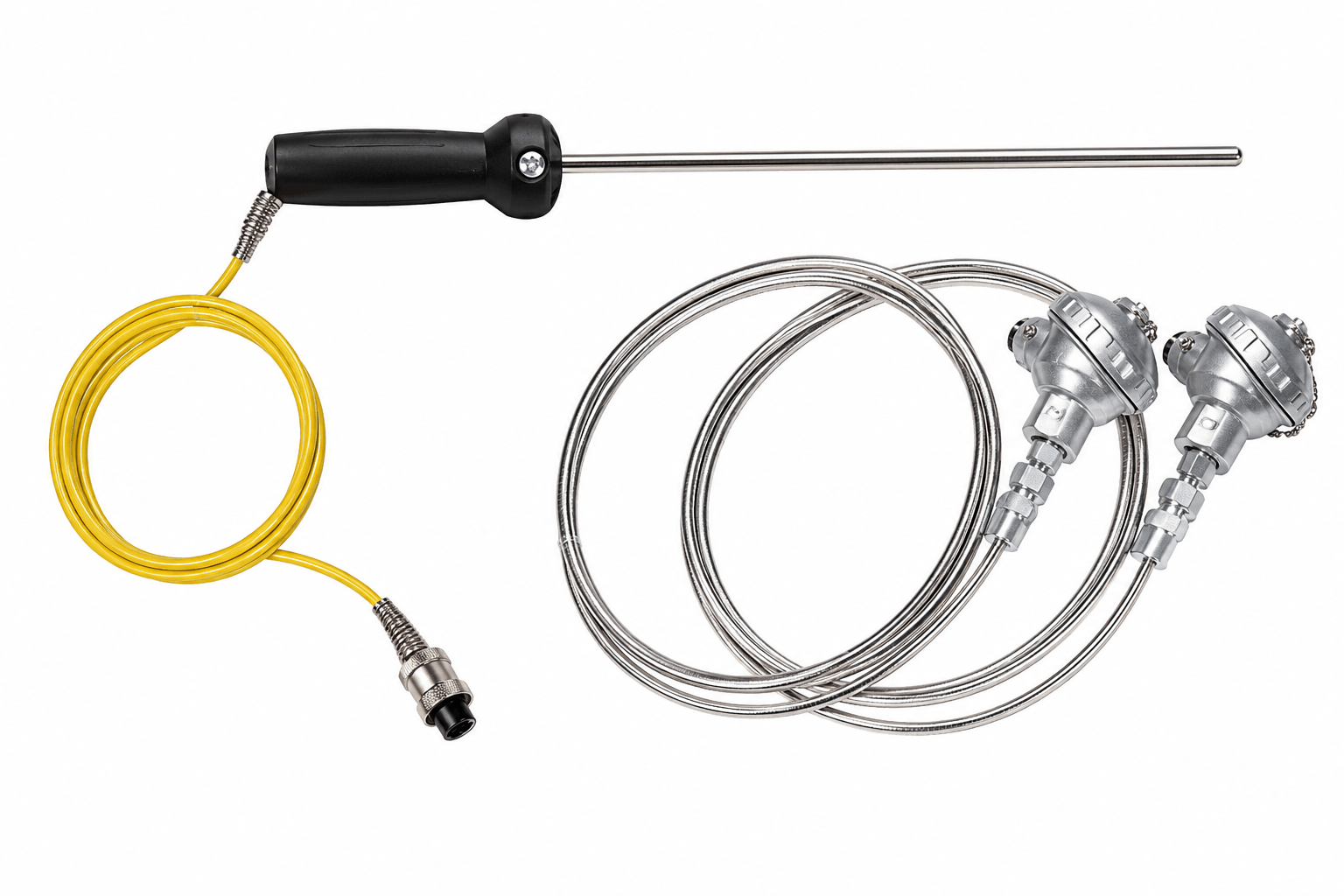

7 - Mineral Insulated Thermocouples

Mineral Insulated Head Type Thermocouples are seamless extruded thermocouples with Magnesium Oxide tightly compacted around the conductors which enables them to be very flexible and give very fast response because of small diameters.

• Types Of Thermocouples : Chromel-Alumel (K) type, Iron-Constantan (J) type, T-Type, N-type
• Sheath Material : SS 316, Inconel 600, SS 310
• Sheath O.d. : 1mm, 1.5mm, 2mm, 3mm, 6mm, 12mm
• Thermocouple Length : 25mm, 50mm, 100mm, 150mm, 300mm, 500mm, 750mm, 1m, 2m, 3m, 5m etc.
• Construction Of The T/c : Simplex & Duplex, Both Grounded & Ungrounded

Also Transition Joint Thermocouples to measure temperatures upto 1500°C.

With Extension Wires:

• PVC/PVC
• Teflon/Teflon
• FG/FG/SS

And Quick disconnected Thermocouple Connectors.
