Features

➢ Conforms to ISO 4064, Class - B

➢ Size ranges from 40NB to 500NB

➢ Flange ends to BS : 4504 PN16

➢ Leak proof & sealed totaliser

➢ Magnetic drive, extra dry dial

➢ Repairable without Interrupting Water Supply.

➢ Removable Mechanism ensures Easy Maintenance.

➢ Totaliser Protected by Metallic or Plastic Cover.

➢ Reliable Sensitive Metrology and Low Pressure Loss.

➢ Remote Reading Facility/Pulse Output Available on Request.

➢ Temperature ranges from 0°C-45°C(Cold), 0°C-90°C(Hot)

➢ Accuracy ±2% @ nominal Flowrate

➢ Water meter above 90°C can be provided on request

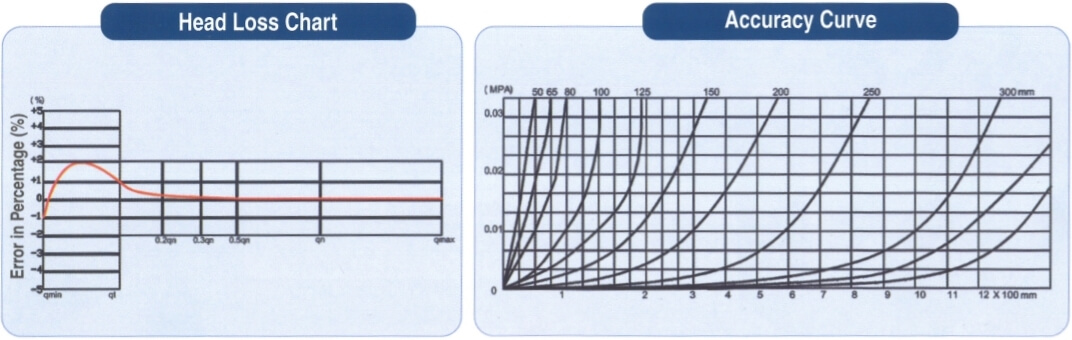

Line Size Selector Chart (With Respect To Flow Range)

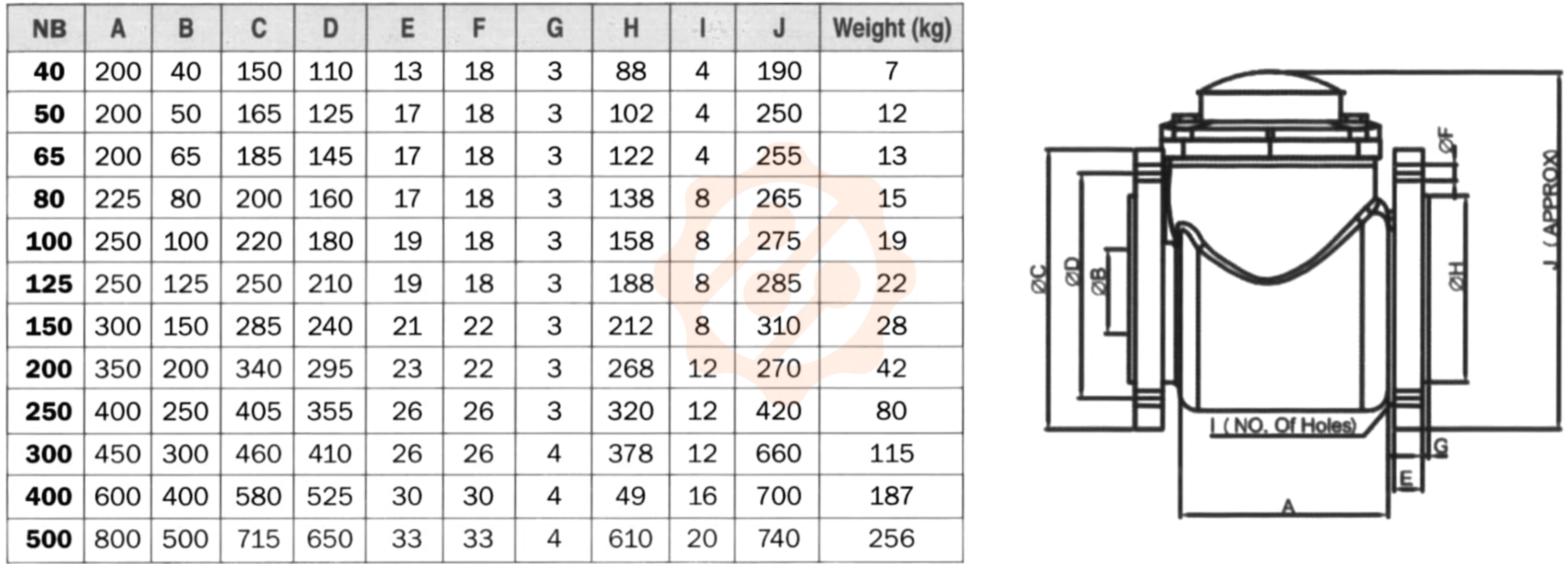

Overall Dimensions (mm)

Installation

FILTERS : We strongly recommend the installation of a filter upstream of the meter to protect the mechanism.

FLOW STRAIGHTENER : If flow straightener is not provided a straight length of 14D & 10D of the pipe dia must be provided on the upstream & the downstream side of the meter.

Features

• Woltman Water Meter
• Iso Class-b Horizontal
• Helix Removable Mechanism
• Magnetic Drive

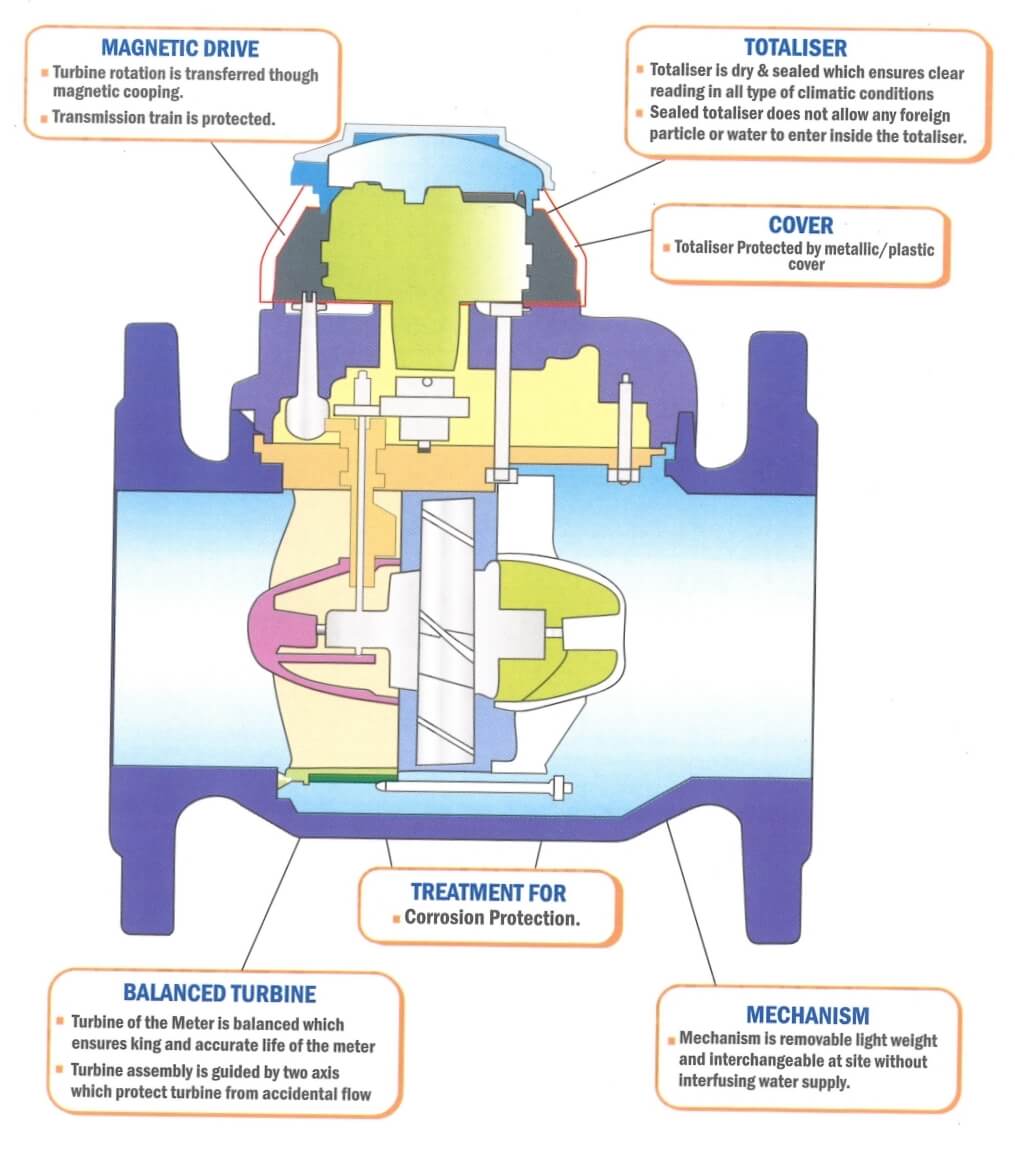

Component Notes

Magnetic Drive

• Turbine rotation is transferred through magnetic coupling.
• Transmission train is protected.

Totaliser

• Totaliser is dry & sealed which ensures clear reading in all type of climatic conditions.
• Sealed totaliser does not allow any foreign particle or water to enter inside the totaliser.

Cover

• Totaliser protected by metallic/plastic cover.

Treatment For

• Corrosion protection.

Balanced Turbine

• Turbine of the meter is balanced which ensures long and accurate life of the meter.
• Turbine assembly is guided by two axis which protect turbine from accidental flow.

Mechanism

• Mechanism is removable, light weight and interchangeable at site without interrupting water supply.

Warranty

Flowtel Engineering Meters are warranted against any manufacturing defect for a period of 12 months from date of supply, provided the meter has not been misused, damaged, installed for services it is not recommended or the seal has been tampered with. The company shall be liable to furnish part/parts thereof or full water meter as the company may deem fit.
