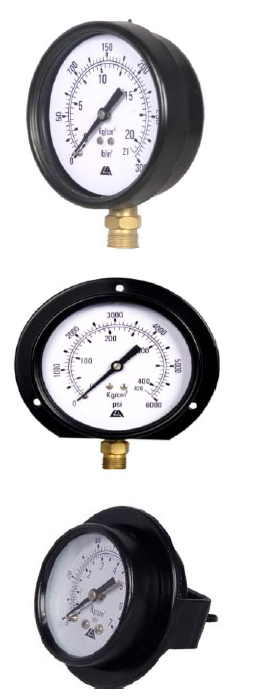

Dial Size: 250/150/100/80/63/50/40 mm
Range: Vacuum, Compound, 0….1 Kg/cm2 to 0….1500 Kg/cm2
Configuration: Bourdon Tube
Shape of Bourdon: ‘C’ Type / Helix Type
Case & Bezel: Drawn Steel Black Coated
Movement: Brass
Bourdon: Brass
Socket: Brass
Connection: 1/8”, 1/4”, 3/8”. 1/2” BSP/NPT (M/F)
Mounting: Bottom / Back direct, Bottom Surface, Back Panel, Back Bracket Mounting
Pointer: Aluminum
Dial: Aluminum, Black numerals in White background
Dampening Liquid: Glycerin with leak proofing and Weather Proof both Available
Joint: Soldering
Glass: Shatterproof / Toughened glass, Acrylic
Over-range Protection: 30% above FSD
Accuracy: ±1.6% FSD
Operation Temperature: -40~80 °C
Enclosure Protection: IP-55, IP-65 (filled)
Standard: IS:3624, EN 837
