TEMPERATURE SENSORS, INDICATORS & CONTROLLERS

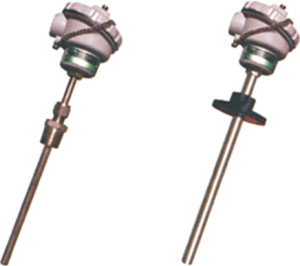

CONVENTIONAL THERMO COUPLE
& RTD ASSEMBLIES
- Ceramic insulated wide in bead construction
- Available in K and N caliberation
- SS316 and INCONEL 600 are standard sheath materials
- Also available in SS310/SS316 & INCOLOY 800
- Terminal heads for flameproof application also
- ½” BSP (F) cable entry as standard
- Single cable entry without cable gland as standard
- Double cable entry and cable glands optional
- Elements terminated into nickel plated brass terminals mounted
- on high purity ceramic terminal block
- All models also available with dual element configuration
THERMOWELLS & PROTECTION TUBES
- Wide range of BARSTOCK ( Monolithic drilled well
of bar material ) - and FABRICATED ( Protection tube weld sealed at
the end of drwan - Metal Pipe ) thermowells and protection tubes.
- Available in SS316/SS310/SS446/Hastalloy
B&C,Tantalum/Monel

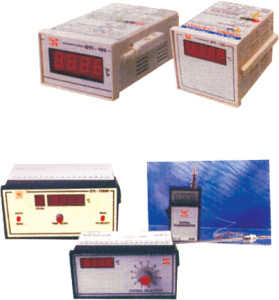

DIGITAL TEMPERATURE INDICATOR/MULTI POINT/SCANNER
SD Digital Temperature Controller are suitable for measure & control of highly precise
Temperature of single/various stages of Heat & cool Process.
Features:
- DT-103/DTI-10M/DTI-13S08/1216
- 96 x 96 x 110 mm/ 72 x 72 x110mm/ 48 x 96 x110mm
- 8 x 72 x110 mm/ 96 x 192 x 200mm
- Range-50°C to 200°C, 400°C, 1200°C, 1600°C
- J&K Thermocouple Pt-100 (RTD) /4-20 mA/Pt-Pt-Rh 10% and 13%
- 3.5 digits, 0.5ÿ Red LED Display
- Accuracy : J,K ±1%, Pt-100/4-20 mA ±0.2%
- High Accurate design
- Hold Switch, Auto/Manual and Adj. Scan Time for scanner
