Material of construction:
Enclosure : Aluminum anodize/S.S-304/S.S-316

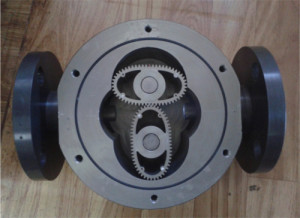

Rotor : Aluminum anodize/S.S-316/PPS
O-ring : NBR/Viton
Shaft : Hard Stainless Steel-316
Accuracy (standard installation position) : ±1% RS /0.15% FSD
Repeatability : 0.1%
Maximum working pressure :
Fluid &Ambient temperature: -40 to80°C
Power voltage: 5 – 24V DC / Battery operated
Output:
high electric level : less than 4.5 VDC( input voltage 5 VDC)
low electric level : higher than 0.5 VDC( input voltage 5 VDC)
Connection: Thread (M/F) or flange
5 MPa for aluminum body
: 25 MPa for s.s. body
: above 250 bar please contact company
Output signal: NPN open conector : 5 -24 vdc
/Reed switch
Technical Data Sheet
Application:
Aluminum body and rotor : Flow measurements of kerosene, Gasoline, diesel, light oil, heavy oil
S.S. body and rotor : Flow measurements of Pharmaceutical drug, food oil, and all application
