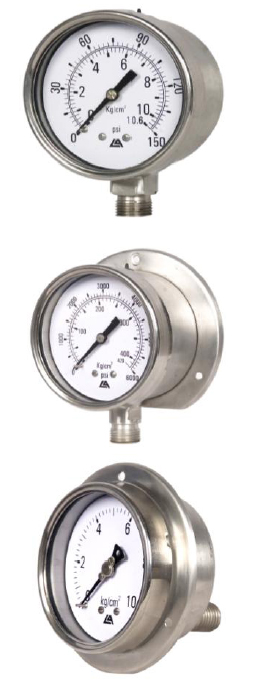

- Dial Size: 250/150/100/80/63/50/40 mm
- Range: Vacuum, Compound, 0….1 Kg/cm2 to 0….1500 Kg/cm2
- Configuration: Bourdon Tube
- Shape of Bourdon: ‘C’ Type / Helix Type
- Case & Bezel: AISI SS 304, Self Color Finish
- Movement: AISI SS 304
- Bourdon: AISI SS 316
- Socket: AISI SS 316
- Connection: 1/8”, 1/4”, 3/8”. 1/2” BSP/NPT (M/F)
- Mounting: Bottom / Back direct, Bottom Surface, Back Panel, Back Bracket Mounting
- Pointer: Aluminum Black Colored Micrometer zero adjustabl
- Dial: Aluminum, Black numerals in White background
- Dampening Liquid: Glycerin with leak proofing and Weather Proof both Available
- Blow off Disc: Yes, Neoprene
- Joint: Argon Arc Welded
- Glass: Shatterproof / Toughened glass, Acrylic
Over-range Protection: 30% above FSD - Accuracy: ±1.0% FSD
- Operation Temperature: -40 ~ 300 °C
- Enclosure Protection: IP-55, IP-65 (filled)
- Standard: IS:3624, EN 837
